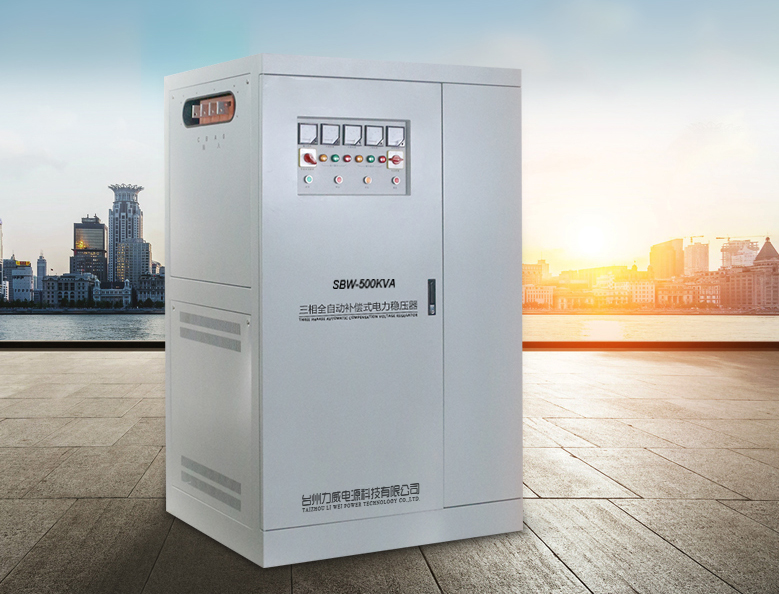

三相380V电压稳压器采用国际先进的补偿技术设计制造，三相稳压器(150kw,200kw,500kw)具有容量大，效率高，使用维护方便，运行可靠的特点。三相电压380v100kw稳压器可与任何性质负载匹配，广泛应用于交通，邮电，通讯，广播电视，计算机系统，注塑，数控机床及各种电动机等设备，并为进口CT机等医疗设备，各种电梯配套特种机型。
HY、DBW系列单、三相全自动补偿式电力稳压器是适用于当外界的供电网络电压波动或负载变化而造成电压波动时，能自动保持输出电压稳定。本系列产品与其他型式的稳压器相比，具有容量大、效率高、无波形畸变、电力调节平稳等优点，适用负载广泛，能承受瞬时超载，可长期工作，手动/自动切换，设有过压保护、缺相、相序保护及机械故障自动保护，本机体积小，重量轻、使用安装方便，运行可靠等优点。
DBW/HY Series single、three phases full automatic compensated power voltage stabilizer appliant to when the power network voltage fluctuates or the load currentvaries, it can keep output voltage in steady state auto matically, Compared with othervoltage stabilizers, it has the advantage of large capacity, high efficiency, no wave distortion, stable voltage adjustment, suitability for kinds of loads, bearing instantaneous overload, working continually for long time, as well as free transferring between manual controland automatic control, etc, besides, it is provided with protection against over-voltage over current ,phase failure and protection for phase sequence and has following merits: small volume, light weight, convenient installation and reliable running and so on.
使用场合
广泛用于邮电、商场、电梯、医院、学校、印刷、纺织、证劵等所有需要的正常电压保证的场合及大、中型工矿企业车间，部分供电及重要设备和配套。Widely used in post and telecommunications, department stores, elevators, hospitals, schools,printing, securities and other occasions where all needs normal voltage to ensure, such as workshop mines medium enterprises, some of the important equipment and computerpowerand support.
产品性能
| 输入电压 | 单相：220V±20%或者220V±30%（订货时需要说明）Single Phase: 220V±20%or220V±30%(order time make remark)三相四线：380V±20%或者380V±30%（订货时需要说明）Three phases Four-line: 380V±20%or380V±30%(order time make remark) |
| 输出电压 | 单相：220V（相电压）Single phases:220V（Phase Voltage）三相：380V（线电压）Three phases:380V （Ling Voltage） |
| 输出精度 | 2-5%（可调Adjustable） |
| 频率 | 50Hz/60Hz |
| 效率 | ≥95%（功率等级50KVA上） |
| 响应速度 | ≤1.5S |
| 环境温度 | -10~+40℃ |
| 绝缘电阻 | ≥5MΩ |
| 过载能力 | 二倍额度电流，维持一分钟Double rated current one min |
| 波形失真 | 无附加波形失真No additional waveform distortion |
| 市电功能 | 人工启动Byhand |
| 保护功能 | 过压、过流，其它功能另外注明缺相、相序、浪涌、滤波Overvoltage、overcurrent、other protect function when make order timeNeed make remark，lack phase、feel phases、sarge、filter ect. |
中国宏业电器是一家专业从事变压器、稳压器等变配电设备的高新技术企业，主营产品有：变压器,稳压器,变频器,电压增压器,调压器,直流电源,UPS电源,设备配套电源等系列产品，以上产品价格请添加客服咨询。
